ASI Audio 3DME In-Ear Monitor


The ASI Audio 3DME in-ear monitoring system has been upgraded with exciting new features. As the only in-ear monitor with built-in microphones for ambient sound, the 3DME Gen 2 continues to offer a uniquely immersive audio experience.

Key upgrades include:

  • Monitor Bypassing – EQ and limiting can still be controlled from front-of-house or monitor positions when this feature is activated
  • Lower Limiter Threshold – Provides more customizable volume control
  • Start-Up Squeal Reduction – Prevents feedback when turning the monitors on before inserting into ears
  • 8-Hour Battery Life – Double the battery life for extended performance times
  • Enhanced Hearing Support – An improved CROS system for musicians with single-sided deafness

With ambient microphones in each earpiece and a smartphone app for custom mixing, the 3DME Gen 2 takes in-ear monitoring to new levels. Experience your monitor mix blended with the sounds of the stage and audience for a deeply engaging performance environment.


Step into the future of stage monitoring with the all-new 3DME Gen 2. This groundbreaking in-ear system revolutionises your on-stage sound like never before.

Immerse yourself in the ambience of the venue with the 3DME’s one-of-a-kind built-in microphones. These clever mics capture the natural reverb and audience energy, blending it seamlessly into your monitor mix for a vibrant, spacious sound.

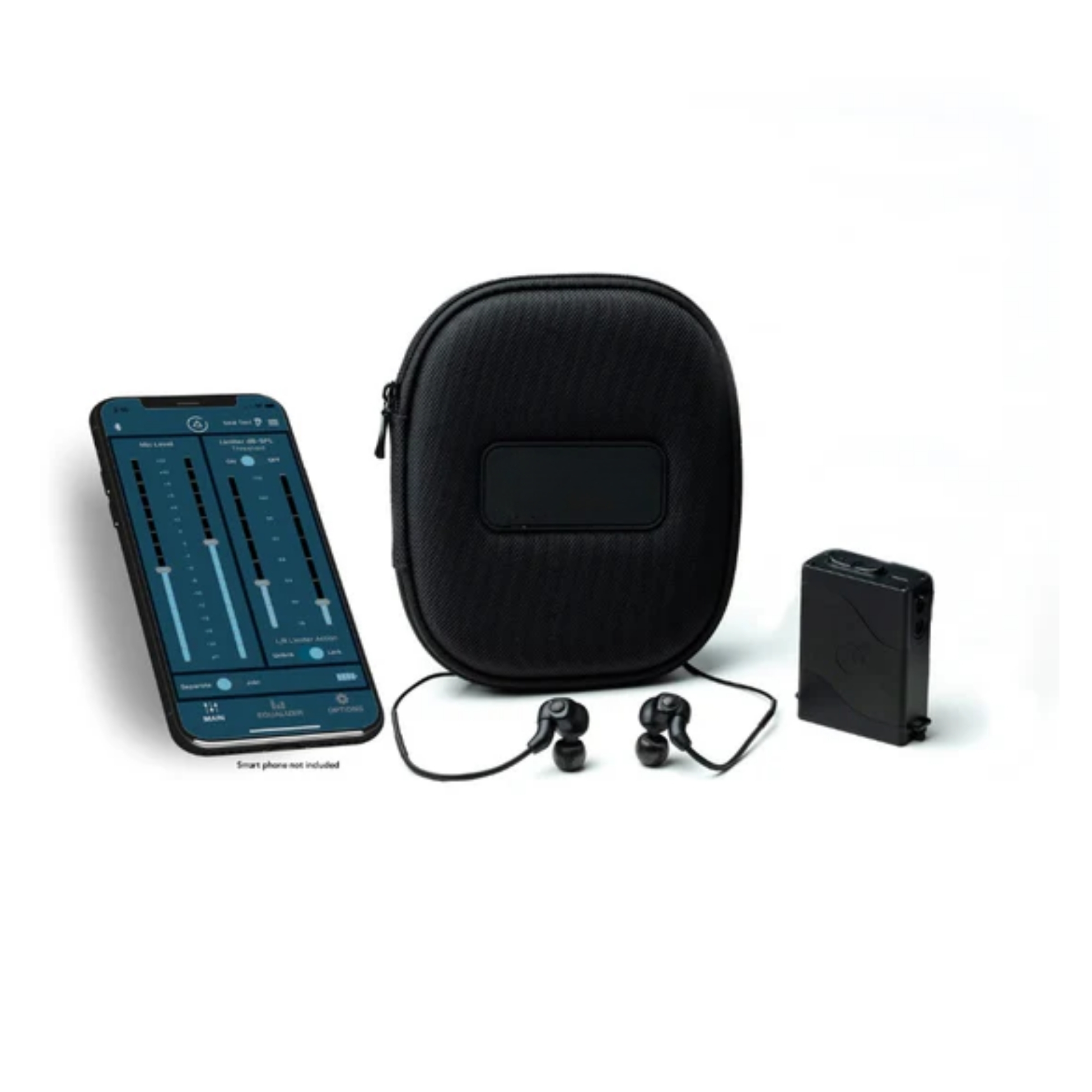

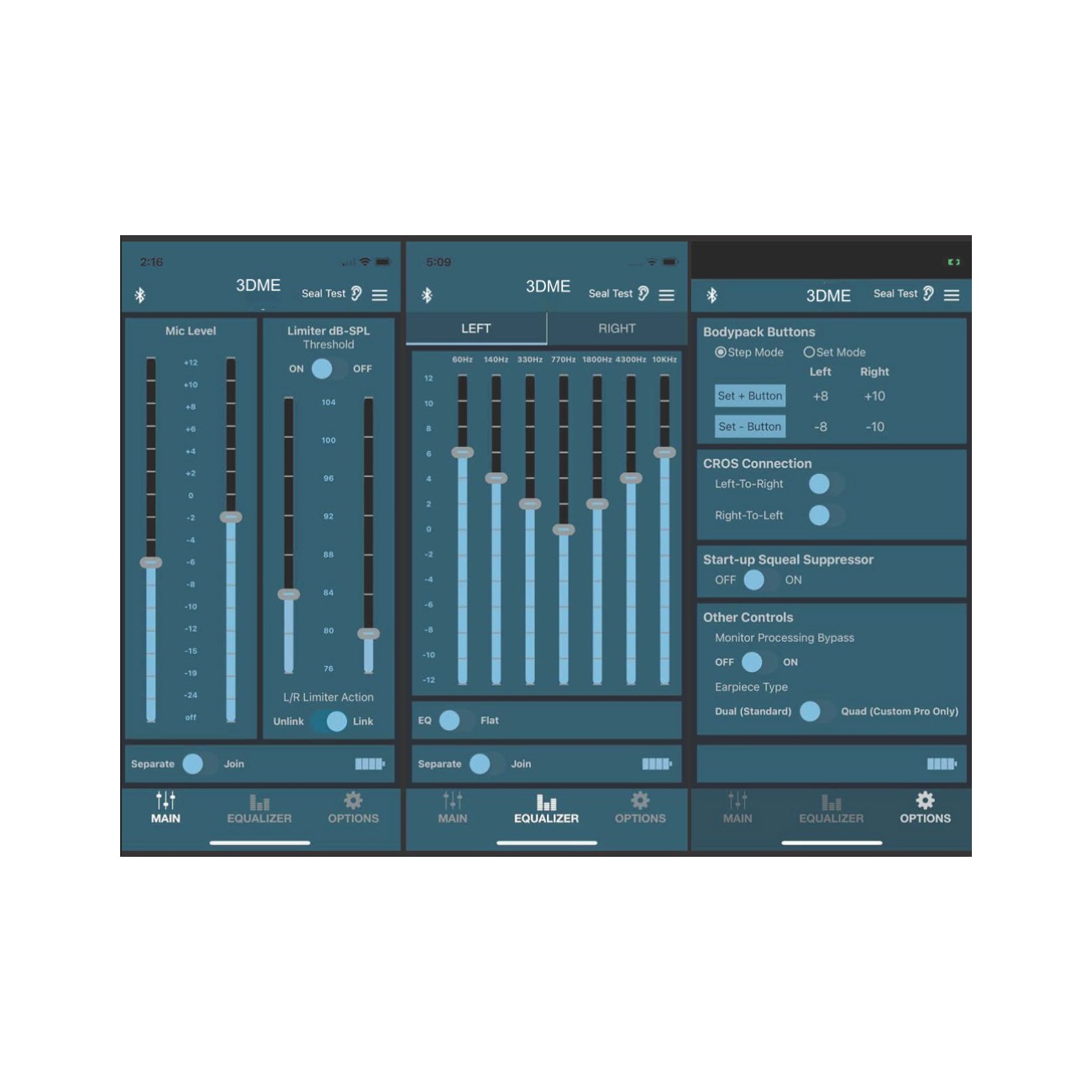

The 3DME App unlocks a world of customisation at your fingertips. Override sound techs and shape your own sound with the monitor bypass, while still accessing vital processing like the smooth limiter and intuitive 7-band EQ.

Gen 2 enhances the 3DME experience. Squealing feedback won’t pierce your ears on startup thanks to the new suppressor, and a single charge fuels a marathon 8-hour performance. The improved CROS mode also opens up monitoring for single-sided deafness.

On the road or on stage, the 3DME Gen 2 takes in-ear monitoring into uncharted territory. Plug in to feel the vibrant ambience around you, shape your precise mix, and enjoy the freedom of all-night monitoring power. The future of IEMs is here.

3DME Gen 2:What’s new

NEW Monitor Processing Bypass Option

The Monitor input signal now bypasses both the EQ and the limiter when enabled. A-list Front of House Engineers asked, and we listened. Now you can control the in-ear monitor audio exclusive of the 3DME App control.

NEW and Improved CROS Function

CROS connection will remove sound entirely from the disfavored ear, instead of just taking the microphone signal across and leaving the disfavored ear with its regular signal; important for those with a problem like Meniere’s Disease, where sound is distorted and uncomfortable in one ear, not just weak.

NEW Start-Up Squeal Suppressor Protects from Feedback

On/Off switch on options page and default set to Off. This is to give the option for anyone who experiences minor feedback if they have the body pack turned on before inserting the earpieces into their ears. Very rarely, a quiet, unharmful feedback squeal can be heard if the end user has their finger covering the ambient microphone when inserting the earpiece.

NEW Limiter Threshold Expansion, Now Starts at 76 dB-SPL – 104 dB-SPL

A-list Monitor Engineers and FOH engineers asked for an expanded Limiter Threshold – once again, we listened. Now the Lowest Limiter Threshold setting starts at 76 dB-SPL, which may be useful for some people with especially sensitive hearing or for related uses.

NEW Improved Rechargeable Battery Life

Now optimised for 8-hour performance use on one single charge

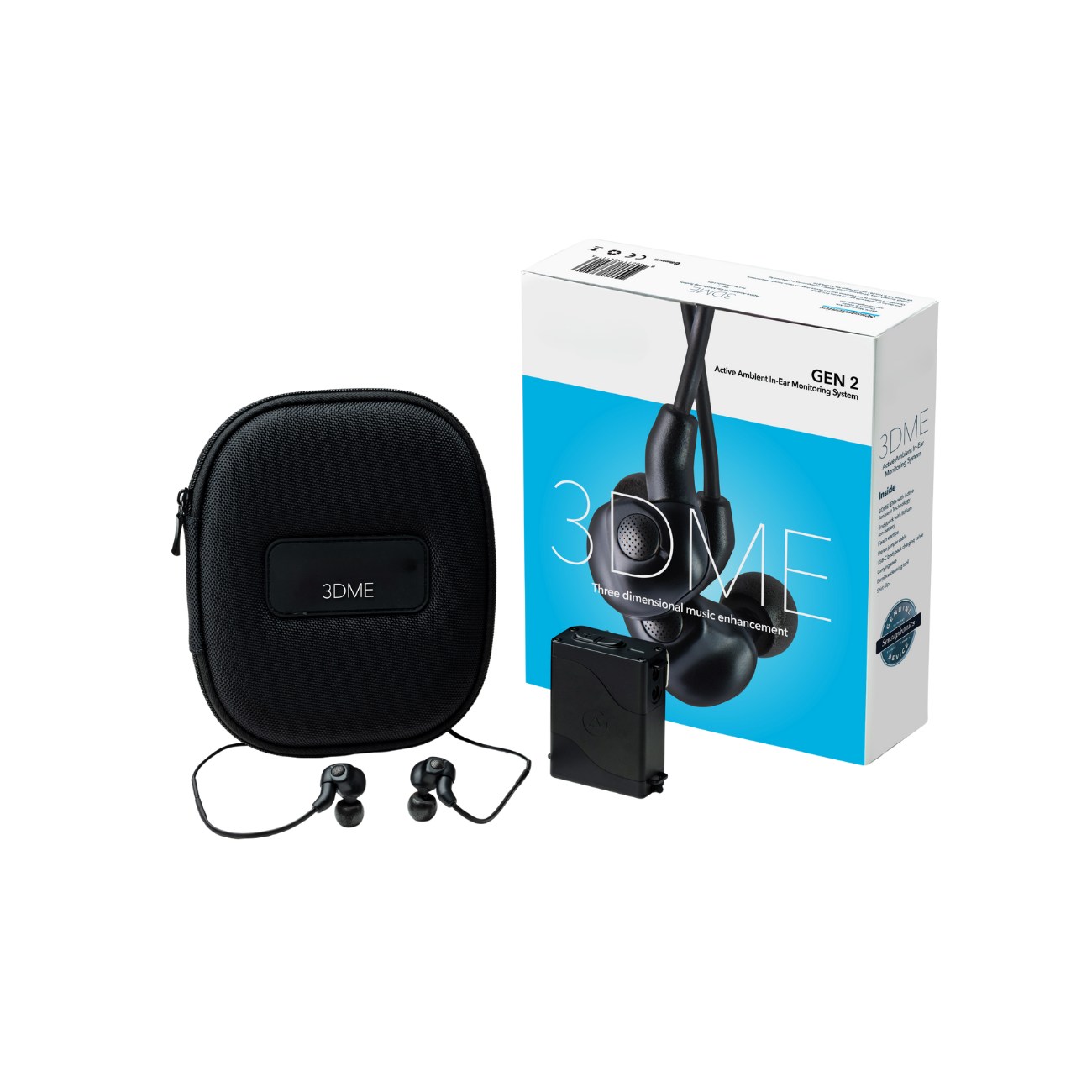

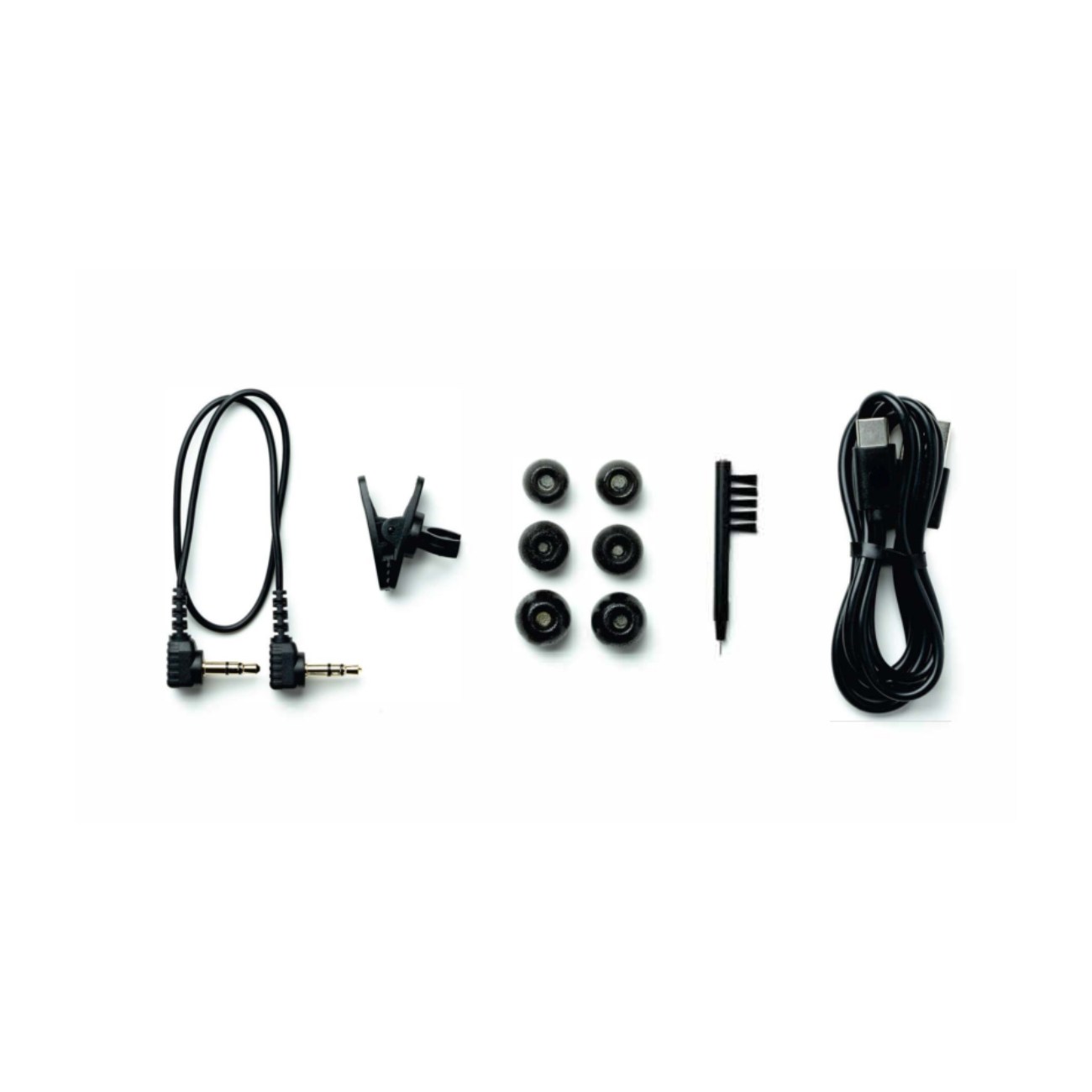

What’s included in the box

3DME In-Ear Monitor Included

The Only Tunable In-Ear Monitor System

Spectacular sound you control in live, studio or streaming performances with the ASI Audio app and miniature microphones embedded in each earpiece. Hear your music, the audience and the room as never before.

Keep Your Ears Out of the Red

Discerning artists are proactive about hearing health. 3DME technology was developed and patented by Dr. Michael Santucci, the audiologist of choice for some of the world’s top artists and performers.

The in-ear Monitor that is revolutionising playing live.

The Pros Use It Why Not You?

Easily customize your Home Entertainment experience to suit your audio taste, without losing touch with those around you. Your favorite Movies, Television Shows, Sporting Events or Concert Films can now be experienced and enjoyed exactly as you want to hear them.

Features of the ASI Audio 3DME In-Ear Monitor

  • Active Ambient technology provides controlled 3D ambience with full earphone isolation.

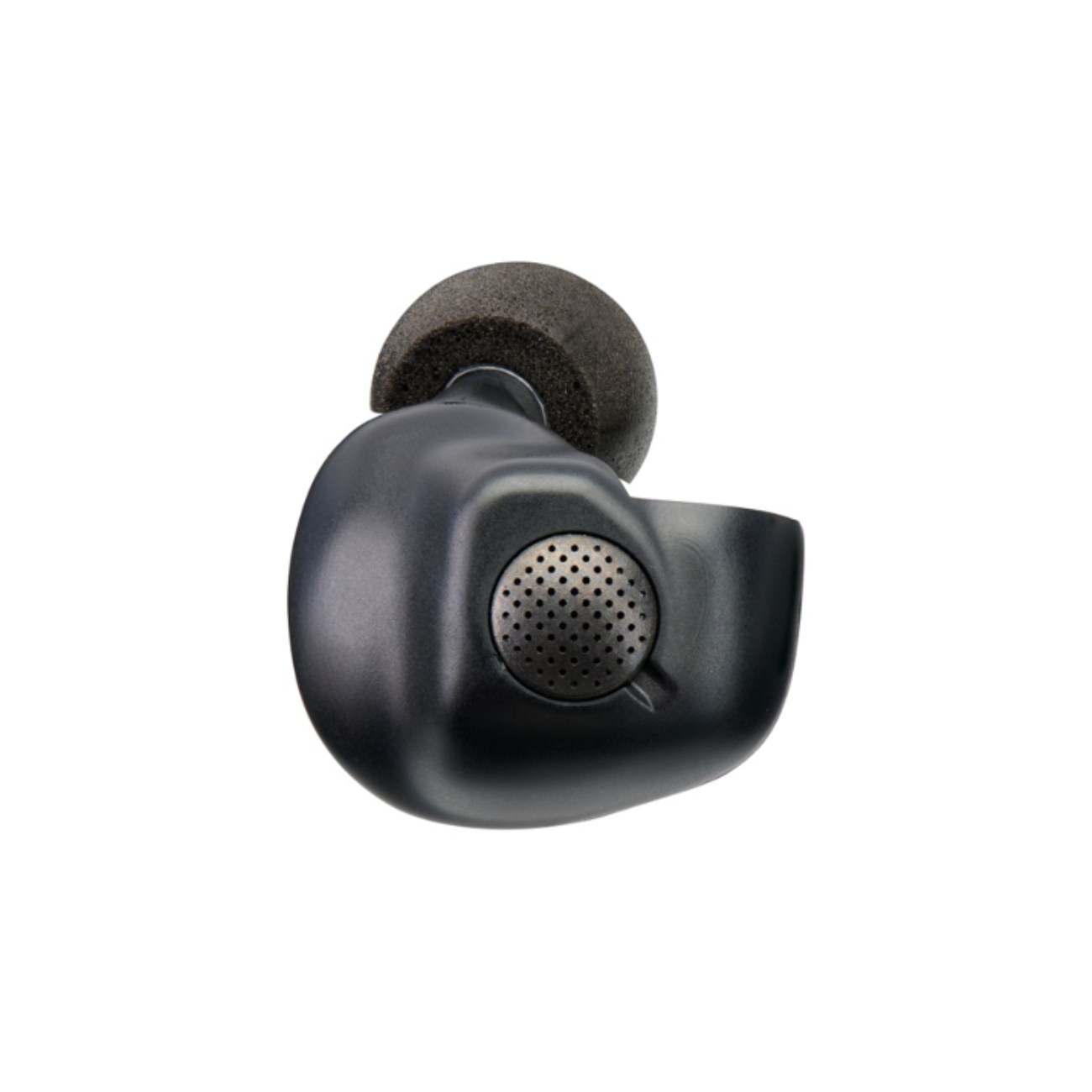

  • Embedded binaural microphones capture full frequency range, full dynamic range natural ambience with accurate 3D directionality.
  • Full-range drivers provide reference-quality sound without crossover distortions.
  • Compact bodypack processing unit combines a monitor mix with the ambient sound.
  • Patented active signal processing enables distortion-free ambience capture up to 135 dB-SPL.
  • Monitor Out jack provides for monitoring of the complete reproduced sound, including by the dB Check (COMING SOON).
  • Intuitive smartphone app sets multiple stored body pack processing options.
  • Selectable ambience level, with left, right adjusted together or separately.
  • Selectable limiting of maximum average reproduced levels, with left, right thresholds adjusted together or separately, and with the limiting action linked between channels or independent.
  • Multiband frequency equalization of the reproduced sound, with left, right adjusted together or separately.
  • NEW Selectable bypassing of all Monitor signal processing, for unimpeded outboard control.
  • NEW Selectable CROS connection for unilateral hearing loss compensation.
  • NEW App-activated Seal Test tones enable confirmation of earphone fit and sealing.
  • Body pack provides ambient level up/down buttons, programmed either for step-wise action or pre-selected levels, for quick in-use adjustment of ambience level.
  • Body pack has a rechargeable Li-Ion battery and Bluetooth interface.
  • Body pack provides LED indication of battery state-of-charge, charging status, and USB power.

Specifications of the ASI Audio 3DME

Frequency Response 20 Hz – 20 kHz
Microphone Input Overload 135 dB-SPL
Maximum Output, 500 Hz 122 dB-SPL
Microphone Equivalent Input Noise 27 dBA-SPL
Monitor Equivalent Input Noise -104 dBV(A) (EQ disengaged), -101 dBV(A) (EQ engaged)
Output Noise 20 dBA-SPL (EQ disengaged), 23 dBA-SPL (EQ engaged)
Acoustic Insertion gain Off, -24 dB to +12 dB in 16 steps
Monitor Sensitivity, 500 Hz 104 dB-SPL for -20 dBV (100 mVrms) input
Monitor Input Impedance 10 kOhm
Limiter Type Adaptive attack, average responding, frequency selective
Limiter Threshold 76 dB-SPL to 104 dB-SPL in 8 steps and Off
Maximum Limiter Gain Reduction 20 dB
Multiband EQ +/-12 dB at 60, 140, 330, 770, 1800, 4300, 10 kHz
Latency 0 (EQ disengaged), 540 µsec (EQ engaged)
Operating Time (from full charge) ~8 hours
Charge Time (fully depleted battery) ~5 hours
Battery State-of-Charge Indication Four LEDs, with flashing low battery warning


Wireless Connectivity CleanShot 2022 06 02 at 14.48.21 2x removebg
